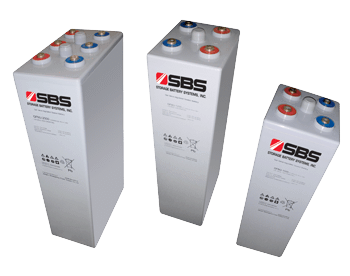

VRZ (OPzV) Series: Tubular Long-Life Batteries
2 Volt Gel Batteries: 200 – 3,000 Ah
The VRZ-Series batteries have tubular positive plates and a gelled electrolyte making them the highest quality valve regulated battery design available. The VRZ batteries are ideal for applications which call for maximum life and maintenance-free operation.
- 15 – 20 year design life at 77°F
- Maintenance-free operation
- Gel tubular plate technology
- Leak-proof post seal
- High cycle life:
- 1500+ cycles @ 80% DOD
- Flame retardant ABS cover standard
- Safe – fully-insulated connections
- Built per OPzV DIN standards
- UL Listed – UL file no. MH19767
- Telecom
- Industrial
- Reserve Power
- Utility
- Solar
| Positive Plate | Tubular plate with calcium-tin alloy |
| Negative Plate | Flat plate grid |
| Separation | Microporous combined with corrugated separator |
| Case and Cover Material | ABS |
| Electrolyte | Fixed as gel |
| Post Design | Leak-proof with brass insert |
| Intercells | Fully insulated, flexible copper cables |
| Temp. Range | 30° to 130° F (68° to 77° F recommended) |
| Float Voltage | 2.25 V/cell |
| Equalize Voltage | 2.35 V/cell |
| Part No. | OPzV DIN Std. | 8Hr Ah Rate | Cell DimensionsL x W x H (in.) | Total Weight(lb.) | I.R.(mOhms) |
| VRZ-200 | 4 OPzV 200 | 200 | 4.06 x 8.11 x 15.3 | 39.7 | 1.20 |
| VRZ-250 | 5 OPzV 250 | 250 | 4.89 x 8.11 x 15.3 | 48.5 | 1.10 |
| VRZ-300 | 6 OPzV 300 | 300 | 5.71 x 8.11 x 15.3 | 57.3 | 1.00 |
| VRZ-350 | 5 OPzV 350 | 350 | 4.89 x 8.11 x 19.9 | 63.9 | 0.90 |
| VRZ-420 | 6 OPzV 420 | 420 | 5.71 x 8.11 x 19.9 | 75.0 | 0.80 |
| VRZ-490 | 7 OPzV 490 | 500 | 6.54 x 8.11 x 19.9 | 86.0 | 0.73 |
| VRZ-600 | 6 OPzV 600 | 600 | 5.71 x 8.11 x 26.8 | 101 | 0.62 |
| VRZ-800 | 8 OPzV 800 | 800 | 8.27 x 7.52 x 26.8 | 142 | 0.50 |
| VRZ-1000 | 10 OPzV 1000 | 1000 | 8.27 x 9.17 x 26.8 | 173 | 0.45 |
| VRZ-1200 | 12 OPzV 1200 | 1200 | 8.27 x 10.8 x 26.8 | 205 | 0.40 |
| VRZ-1500 | 12 OPzV 1500 | 1500 | 8.27 x 10.8 x 32.7 | 254 | 0.30 |
| VRZ-2000 | 16 OPzV 2000 | 2000 | 8.42 x 15.7 x 31.8 | 342 | 0.25 |
| VRZ-2500 | 20 OPzV 2500 | 2500 | 8.35 x 19.2 x 31.8 | 432 | 0.20 |
| VRZ-3000 | 24 OPzV 3000 | 3000 | 8.35 x 20.7 x 31.8 | 512 | 0.18 |
