VRLA Battery Racks - Exponential Power

vrla-rack-vr-4t5w

VRLA Battery Racks

Racks for 6V & 12V Batteries Between 30 and 225 AH

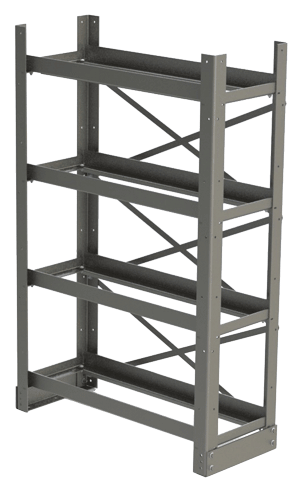

The Exponential Power VRLA racks have adjustable rails allowing them to hold top terminal 6 or 12 volt VRLA batteries ranging from 30 to 225Ah (100 to 800Wpc).

Seismic Zone 4 Certified

The heavy duty, yet light-weight frame makes them easy to move and install.
The VRLA rack rails have 3″ high lips. Batteries that are shorter than 7″ high do not require the ‘-Z4’ hold down bracket option for seismic Zone 4 applications.
When a seismic rack is required for VRLA batteries taller than 7″ high the ‘-Z4 ’ option should be ordered and a hold down bracket kit will be provided with the rack.

Contact Exponential Power for information on the different rack sizes and designs available

When ordered with batteries includes cables and jumper(s)
-Z4 racks seismically certified to Zone 4 UBC standards
Powder coated with ASA 61 Gray, corrosion-resistant, epoxy powder
All welded construction with 7 GA frame and rails

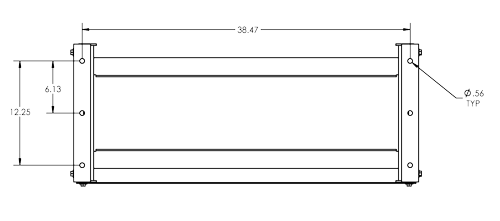

Floor mounting brackets included with all racks
Ship pre-assembled for fast installation
Adjustable rails with 3″ lip

Part No.	Description	No. of Batteries(6 or 12V)	Dimensions W x D x H (in.)	Weight (lb.)
VR-1T4W	1 tier x 4 batt.	4	31.5 x 16.3 x 28.3	30
VR-1T4W-Z4	1 tier x 4 batt	4	31.5 x 16.3 x 28.3	36
VR-2T4W	2 tier x 4 batt.	8	31.5 x 16.3 x 28.3	40
VR-2T4W-Z4	2 tier x 4 batt.	8	31.5 x 16.3 x 28.3	46
VR-2T5W	2 tier x 5 batt.	10	40.5 x 16.3 x 28.3	50
VR-2T5W-Z4	2 tier x 5 batt.	10	40.5 x 16.3 x 28.3	56
VR-4T5W	4 tier x 5 batt.	20	40.5 x 16.3 x 67.5	98
VR-4T5W-Z4	4 tier x 5 batt.	20	40.5 x 16.3 x 67.5	104
