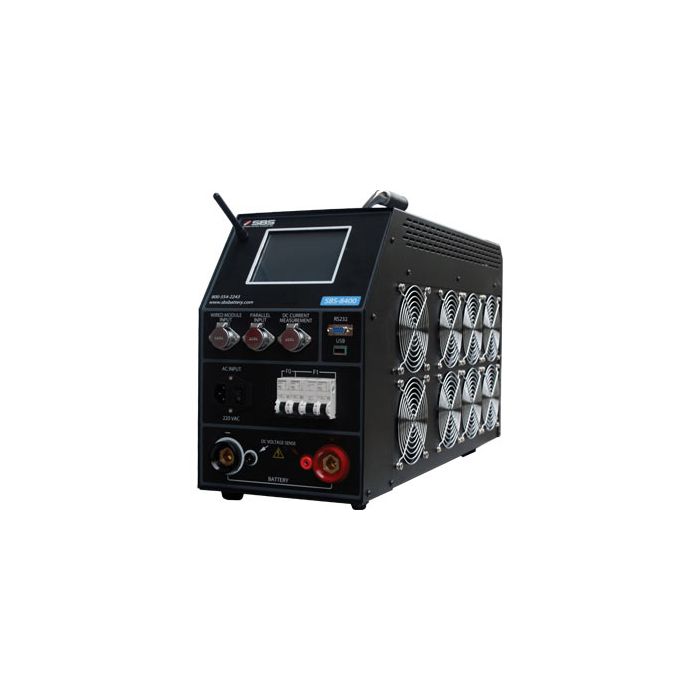

SBS-8400: Battery Capacity Tester

SBS-8400: Battery Capacity Tester

Battery Capacity Tester with Monitoring

10–300 Vdc, 0–120 Amp Constant Current Smart Load Bank with Individual Cell Monitoring Capabilities for NERC and IEEE load testing

The SBS-8400 is a versatile and fully programmable, constant current discharge load bank with detailed data acquisition and display capabilities. The unit features a user-friendly touch screen menu and a complete built-in data monitoring/acquisition system when paired with wireless modules and software.

Unlike basic load banks, the SBS-8400 is a high-tech solution for easy, efficient collection of data and generation of records for archiving.

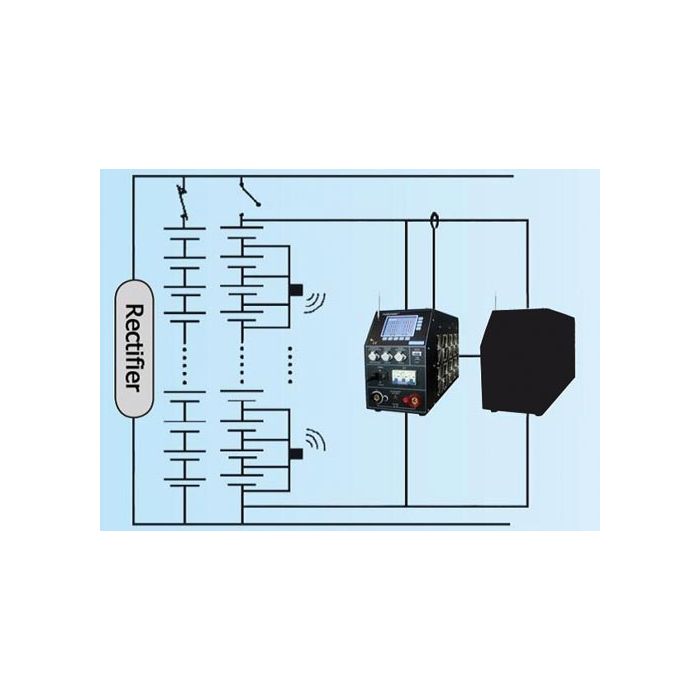

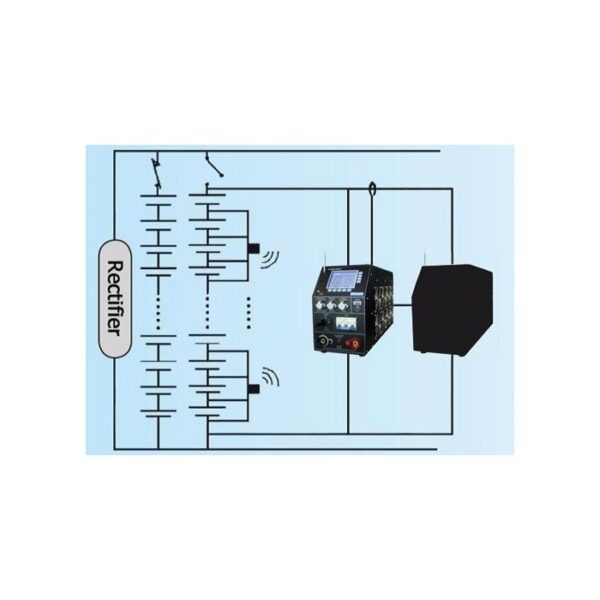

Paralleling Load Banks

Alone, the SBS-8400 has a 0–120 Amp constant current draw range. However, it is possible to parallel additional compatible load banks with the SBS-8400 to increase the current.

With the optional P/N 8400-600A DC clamp the user can discharge up to 720 Amps and the SBS-8400 will monitor the total DC current being drawn by up to two additional load banks in parallel.

  • Wide voltage and current range: 10–300 Vdc / 0–120 Amps

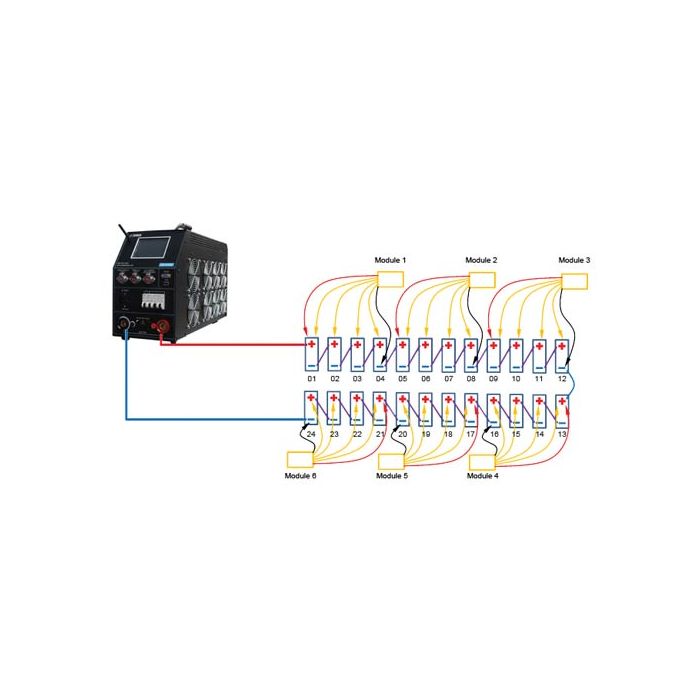

  • Wireless module connection that measures and records individual cell voltages

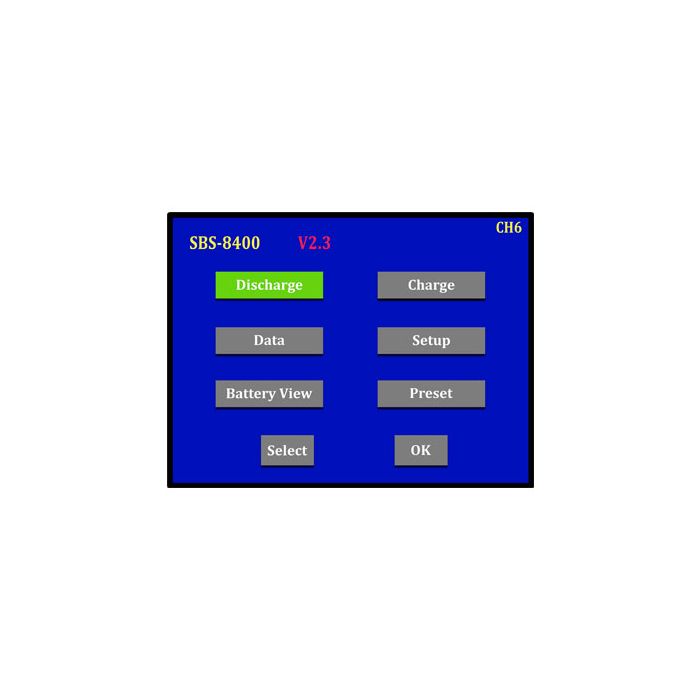

  • 5.7 in. LCD touch screen
  • 30 parameter presets that can be adjusted during testing
  • Selectable discharge mode: constant current (amps) / power (kW)
  • 4 adjustable stop points and multiple alarm designs to control the process intelligently
    • Low system voltage: 0–250 Vdc
    • Discharge time: 0–99 Hour 99 Min.
    • Discharge capacity: 0–9999 Ah
    • Low cell voltage: 0–15.00 V

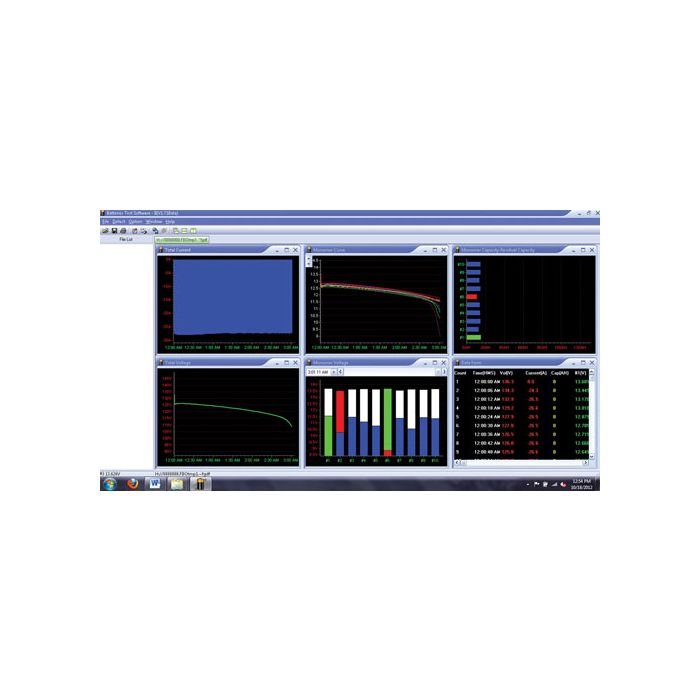

  • View test data in real time on screen or with computer via RS232
  • Telecommunications
  • Utility
  • UPS
  • Battery manufacturing
  • Industrial maintenance
  • Critical power
  • Data center
Weight 53.000000
DC Current Range 10–15 / 150–300 Vdc: 0–60 Amps15–150 Vdc: 0–120 Amps
DC Volt Range 10–300 Vdc
Accuracy & Resolution ±1.0%, 0.1 Amp
Communications Type USB / RS232
Internal Memory 8MB Flash
Display Type 5.7" LCD Color Touch Screen
Power Supply(s) 110 Vac, 60 Hz
Dimensions 9.0 x 14.5 x 27.0 in.
Part No. Description
MODULE-1.2/2-25 1.2/2V Wireless module kit w/ case Qty. 25 (+2 spare)
MODULE-1.2/2-30 1.2/2V Wireless module kit w/ case Qty. 30 (+2 spare)
MODULE-2/6/12-15 2/6/12V Wireless module kit w/ case Qty. 15 (+2 spare)
MODULE-2/6/12-30 2/6/12V Wireless module kit w/ case Qty. 30 (+2 spare)
8400-600A 600 DC Current Clamp
SLAVE-CAB-8400>8400 Paralleling Cable
