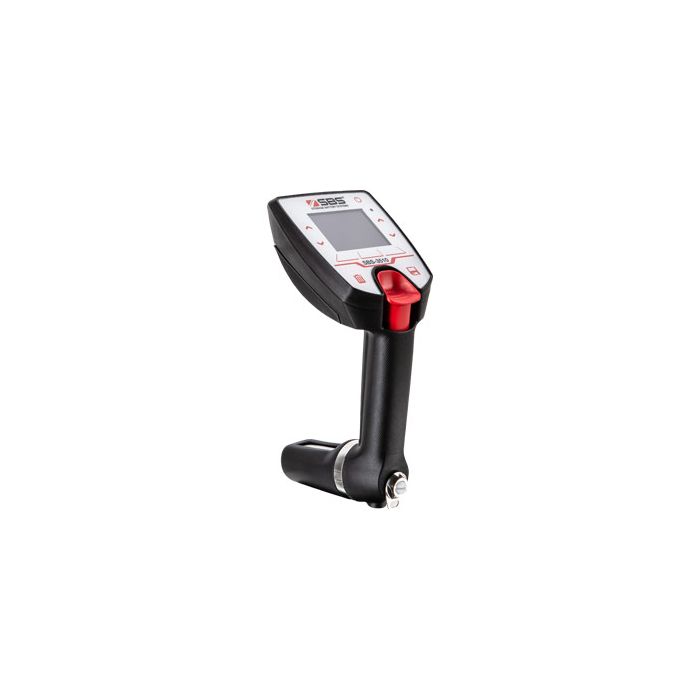

SBS-3510: Digital Hydrometer and Tester

Specific Gravity Tester with Downloading Capabilities for Lead Acid or Nickel Cadmium (Ni-Cd) Batteries

The SBS-3510 uses oscillating U-tube technology to measure specific gravity and temperature of lead acid or nickel cadmium batteries within seconds. The unit is able to take readings between the range of 0.0000 to 3.0000. With the ability to communicate wirelessly to a printer or computer via the integrated Bluetooth interface, testing results can be uploaded into an easy-to-read report.

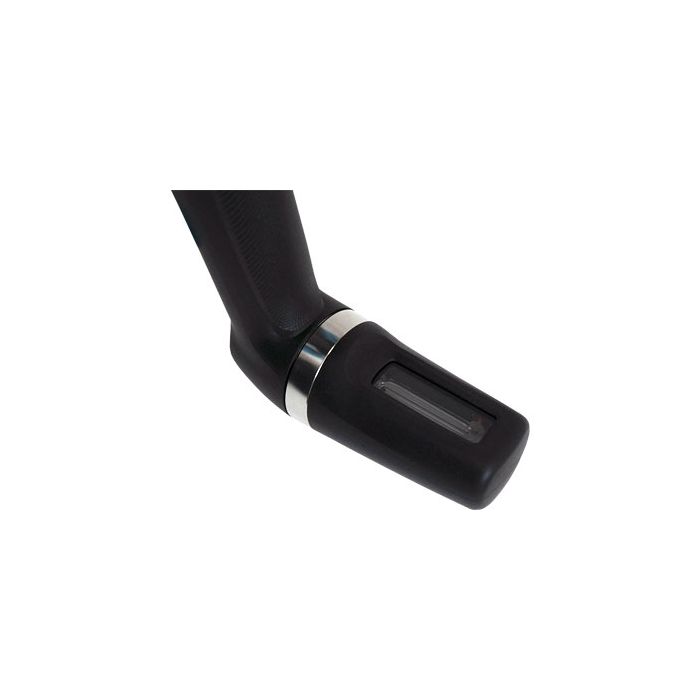

Unlike other digital hydrometers on the market, the measuring cell can be replaced if damage occurs. This design feature eliminates the need to replace the entire unit should the measuring cell become damaged.

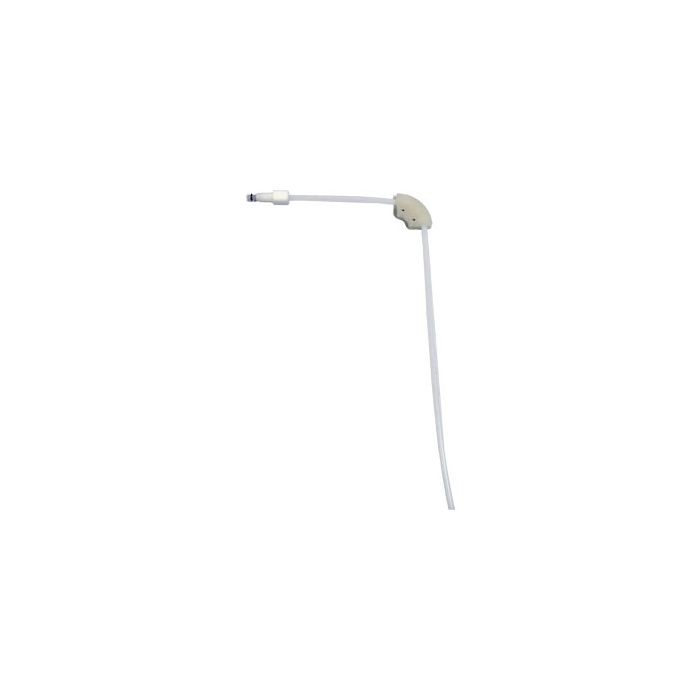

An optional 90 degree bent filling tube provides easier access for measuring specific gravity in battery cells that are located in tight and hard-to-reach areas.

Maintaining the digital hydrometer through proper maintenance is essential to long lasting service life and accuracy. Exponential Power recommends a maintenance interval of at least once a year. Exponential Power is able to meet all digital service needs.

Measures specific gravity, ambient temperature and count
Tests both lead acid and nickel cadmium batteries
Time savings: 5 times faster than conventional methods
± 0.001 accuracy
Automatic temperature compensation
Compact, lightweight design enabling one-hand measurement
Stores up to 100 sample IDs for easy sample identification
Stores up to 1024 measurements including time stamps and sample IDs
Bluetooth interface for data exchange

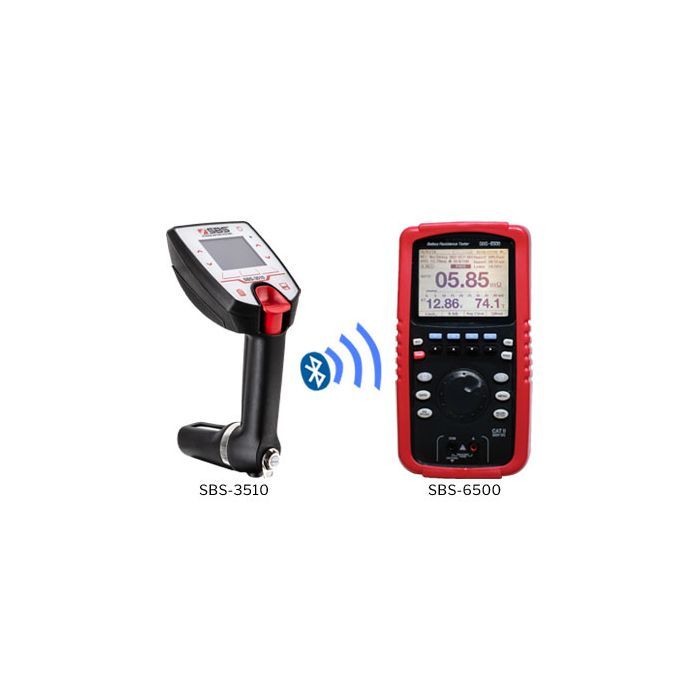

Ability to connect with the SBS-6500 impedance tester via
Bluetooth for integrated data and reporting
LCD display

Utility
UPS
Data Centers
Telecom
Material Handling
Battery Manufacturing

Calibration	With dry air or pure water
Measuring Time	Within 3 seconds
S.G. Range	0.0000–3.0000
Temperature	Measuring: Measuring: 32 to 104° F (0 to 40° C)Ambient: 14 to 122° F (-10 to 50° C)Storage: -4 to 158° F (-20 to 70° C)
Method of Detection	Specific gravity; oscillating tube method
Accuracy & Resolution	±0.001; temperature: 0.4° F (0.4° C)
Power Supply(s)	(3) 1.5V AA (LR6) batteries
Filling Tube	7" L
Dimensions	5.5" L x 5.4" W x 1" H

Part No.	Description
3510-Tube-600	23.6" (600 mm) filling tube
3510-Tube-Bent	90 degree bent filling tube
3510-Housing-Cell	Rubber housing measuring cell
3510-Housing-Panel	Rubber housing operating panel
3510-Wrist-Strap	Spare wristband
3510-Carry-Strap	Set carrying straps
3510-Bluetooth-USB	Bluetooth USB adapter
3510-Printer	Printer CMP-20BT Bluetooth/RS232C
