SBS-2003: Digital Hydrometer and Tester

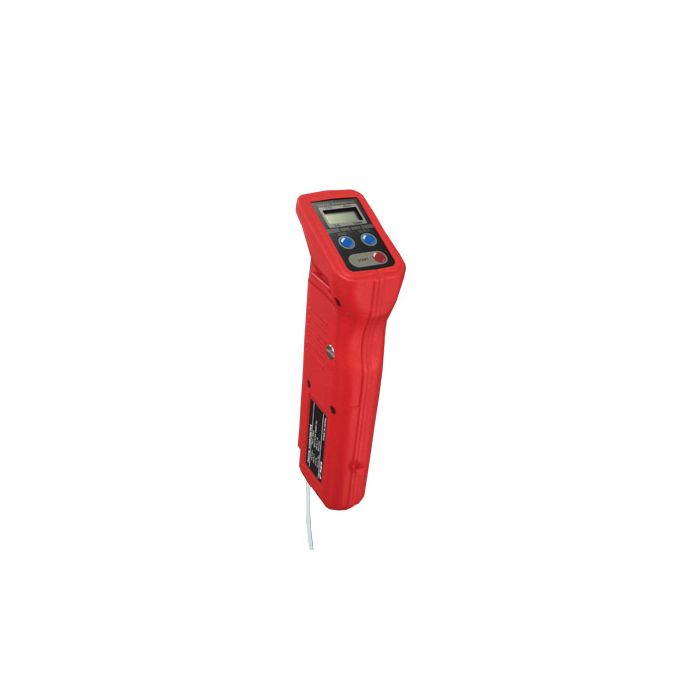

Specific gravity testing is easy and efficient with the SBS-2003. Simply insert the nozzle into the battery and depress the finger pump, which draws a few drops of sulfuric acid (H2SO4) through the tube. Within three seconds the measured refractive index is converted into a temperature compensated specific gravity reading and the specific gravity, temperature and cell count are displayed. After testing is completed, you can transfer the data to your computer via Bluetooth and download results into an Excel report.

Combining a light weight and durable design with easy maintenance, field-replaceable spare parts and a large data storage memory, the SBS-2003 is suitable for use with lead acid batteries.

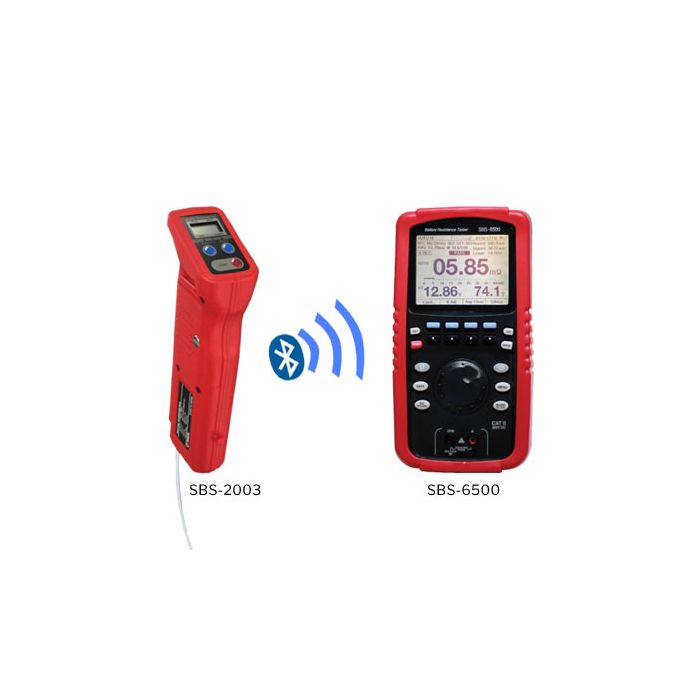

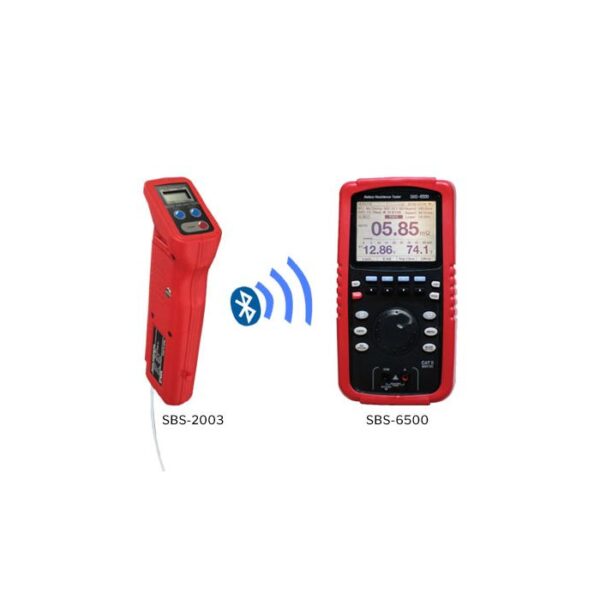

The SBS-2003 has the added benefit of storing the results for future download via Bluetooth.

  • Measures specific gravity, ambient temperature and count within 3 seconds
  • Automatic temperature compensation to 77° F (or 25° C)

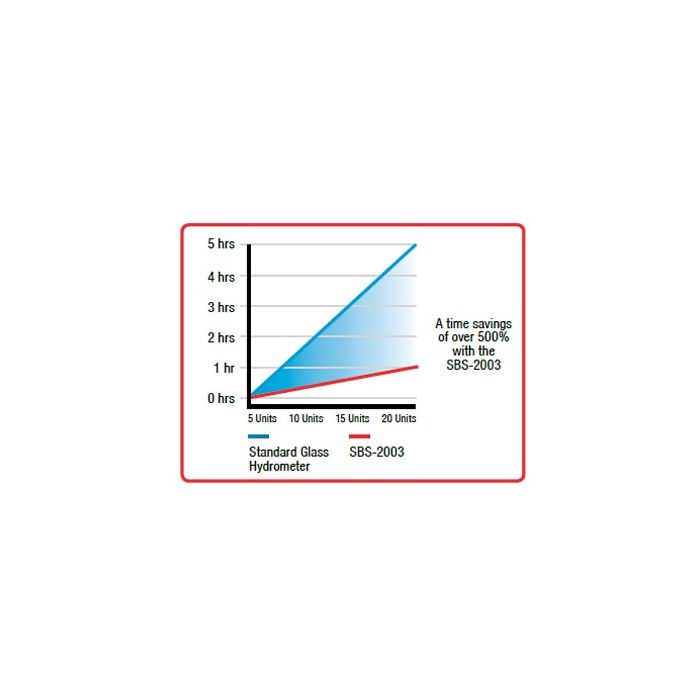

  • Time savings: 5 times faster than conventional methods
  • Stores up to 1000 readings

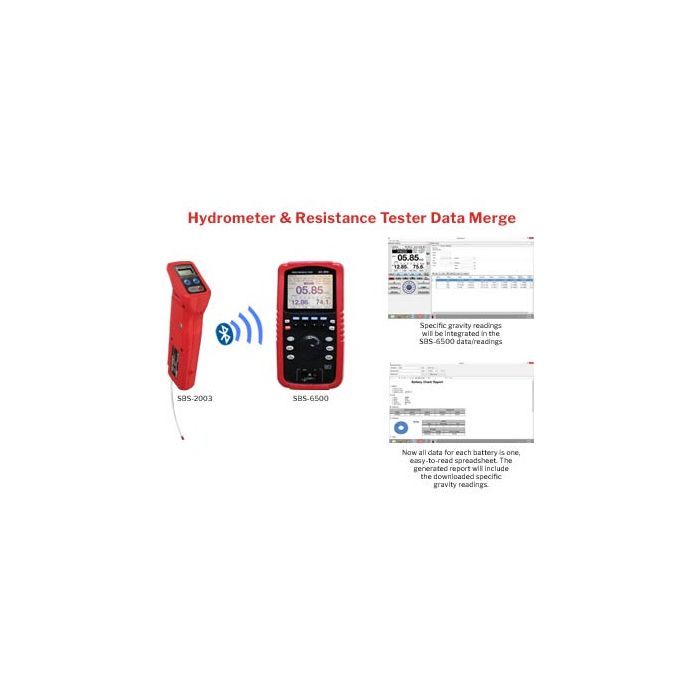

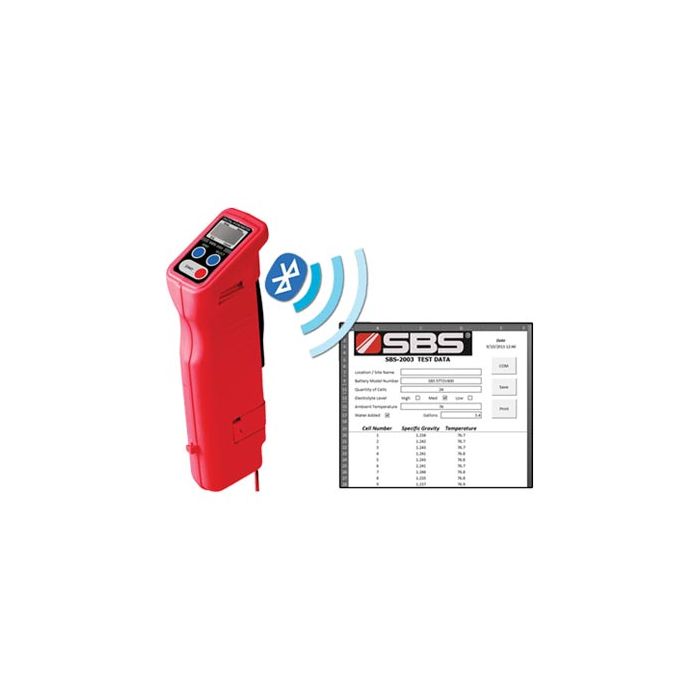

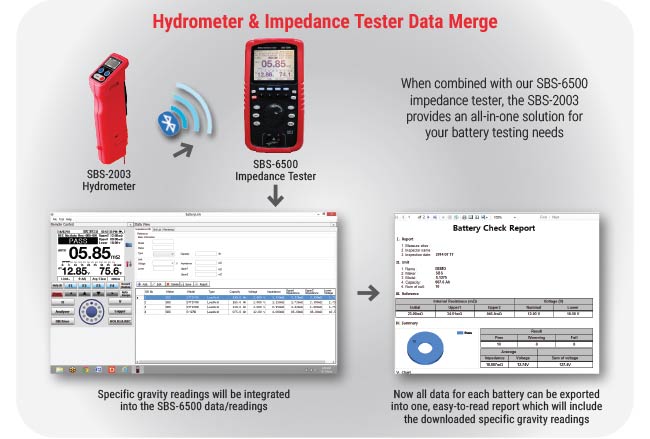

  • Wirelessly transfers testing data via Bluetooth to provided software to create an Excel report
  • Many unit options with wide voltage and current range
  • Automatically discharges batteries unmanned without danger of over-discharging
  • Continuously holds the current set throughout the test

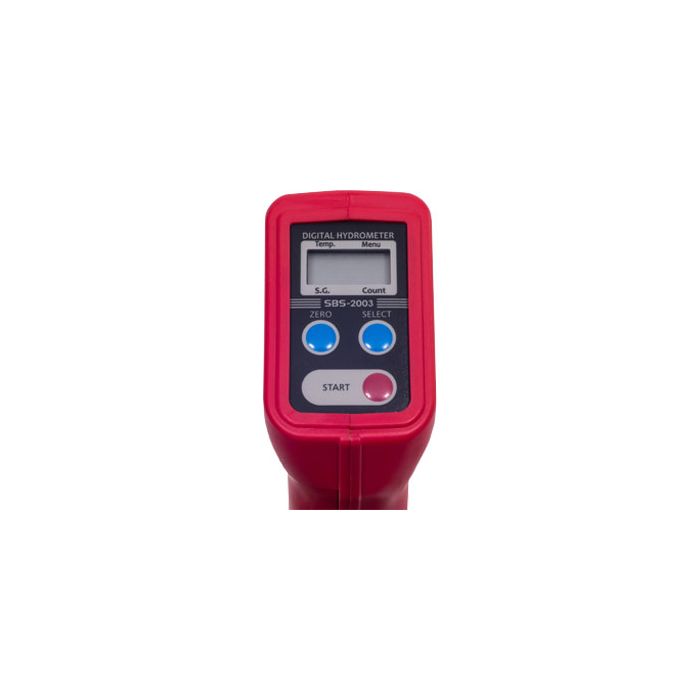

  • LCD screen displays real time voltage, discharge current and capacity/Ah removed
  • Test parameters are adjustable during test without stopping test
    • End system voltage
    • Discharge time
    • Discharge capacity (Ah)
  • Units can be slaved with the SBS-8400 and/or other load banks to increase amp draw
  • Utility
  • UPS
  • Data Centers
  • Telecom
  • Material Handling
Weight 0.700000
Calibration Distilled or de-ionized water
Measuring Time Within 3 seconds
S.G. Range 1.000–1.400
DC Volt Range 0V to 100V; can withstand 300V
Temperature Measuring: 5 to 40° C (41 to 104° F)
Method of Detection Specific gravity; light refraction method
Accuracy & Resolution Specific gravity: ±0.002 @ 10 to 30° C (50 to 86° F), Temperature: ±1° C @ 10 to 30° C (1.8° F @ 50 to 86° F)
Power Supply(s) (1) DC9V alkaline battery
Filling Tube 9.5" L x 1/8" diameter
Dimensions 2.75" D x 1.75" W x 8.25" H
Part No. Description

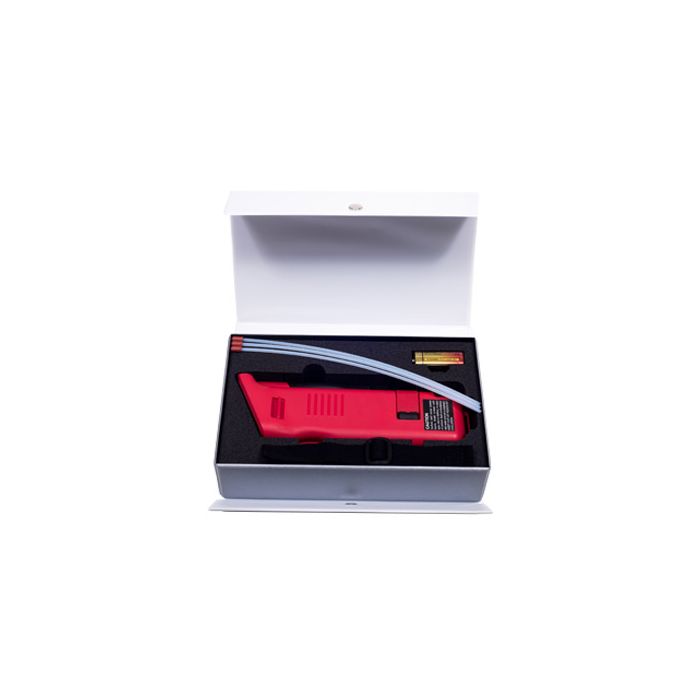

2002/3-SPR-PRT-KIT Spare parts kit includes: O-ring, sample chamber w/ rubber pump
