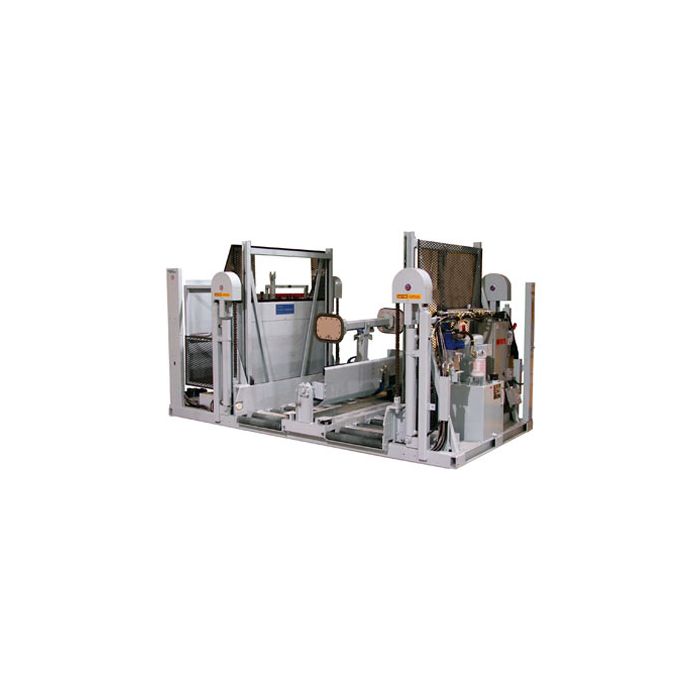

Sackett Hydra-Handler Select: Multi-Stacking Battery Changer

Designed with a unique heavy-duty rack and pinion extractor arm, the Sackett Hydra-Handler Select can be configured for 1-high to 3-high stacking applications.

Extractor Arm: Heavy Duty with Rack and Pinion Gearing
Controls: Direct Hydraulic Valves
Safety Gate: Hydra-Handler Disabled if Safety Gate is Not Closed
Roller Deck: Hydra-Handler Will Not Travel and Arm Will Not Rotate When Battery is Outside of Roller Compartment
Extractor Arm: Hydra-Handler Will Not Travel and Arm Will Not Rotate When Arm is Outside of Roller Compartment
Operator Present: Hydra-Handler Disabled if Operator is not in Position. (Floor Mat)
Travel/Lift Hydraulics: Direct Hydraulic Valves
Power Unit Orientation: Vertical

Draw Bar Pull / Magnet	1,500 lb
Raise / Lower Speed	18 fpm (5.5 mpm)
Travel Speed	200 fpm (61 mpm)
Draw Bar Pull / Vacuum	1,500 lb
Hydraulic Pump	HVDP (Hydraulic Variable Displacement pump) 10gpm
Stacking	Up to 3-high
Total Compartment Rollers	8
