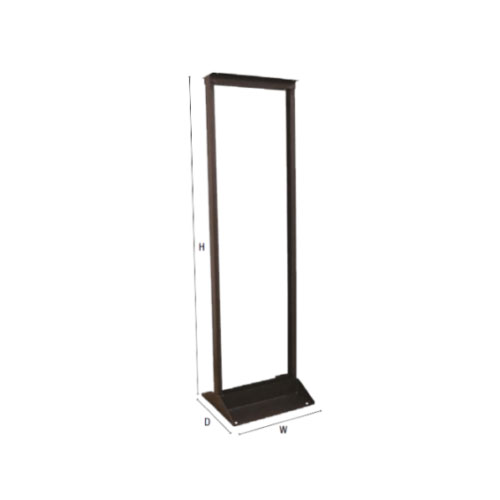

Relay Racks

• 19″ and 23″ rack configurations
• All steel construction
• Black powder coat finish

Resources

• • Relay Racks Cut Sheet
  • 94384 & 94784 Data/Drawing

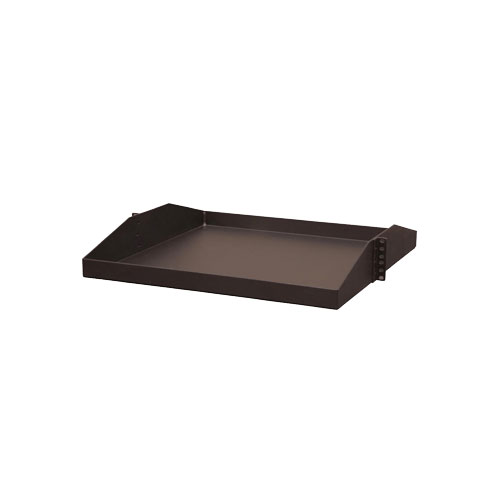

19″ Standard Battery Tray

• 350 lb. capacity
• Designed for front access or monobloc style batteries
• Black powder coat finish

Resources

• • 91304 (19″ Standard) Rack Drawing

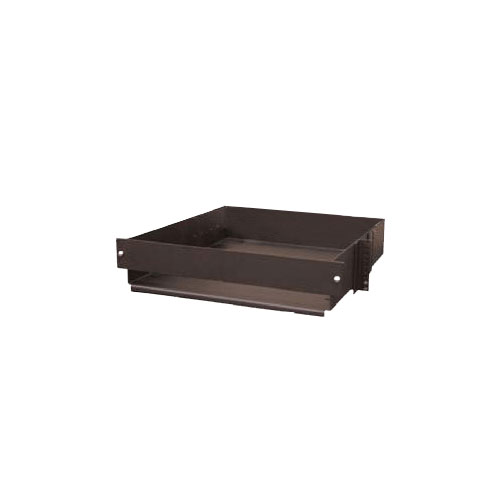

23″ Heavy Duty Battery Tray

• 650 lb. capacity
• Designed for front access or monobloc style batteries
• Welded heavy gauge steel construction
• Black powder coat finish

Resources

• • 91305 (23″ Standard) Rack Drawing
  • 91302 (23″ Heavy Duty) Rack Drawing

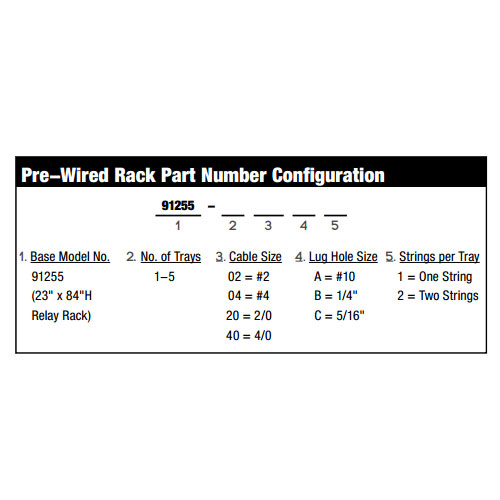

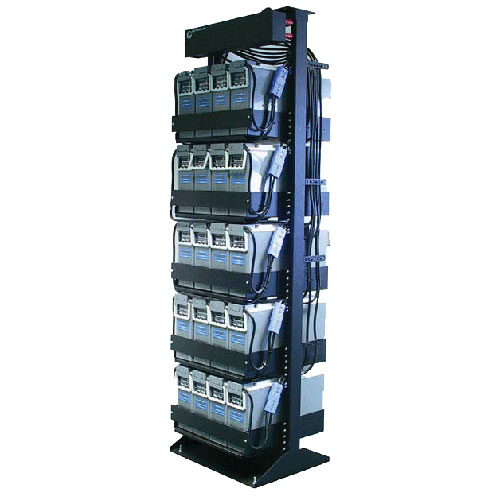

Pre-Wired Battery Racks

• 19″ or 23″ pre-wired racks
• 650 lb. capacity per tray
• Two pole quick disconnect per string
• 850A busbar capacity
• Black powder coat finish

Resources

• • 91255 (23″) Pre-Wired Rack Drawing

For additional information, or to request a quote, please Contact Us
