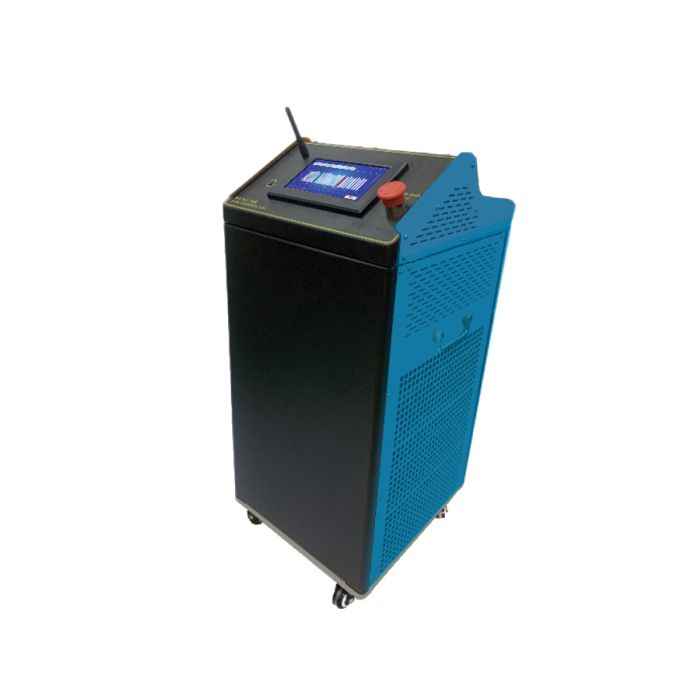

EXP-300CT: Battery Discharge Cycler
EXP-300CT is a best-in-class test platform for traction battery cycling. Used for periodic battery testing and the regeneration. The EXP-300CT is an exceptional addition to your maintenance routine.
The wide voltage range of 12 V – 96 V covers almost all types of traction batteries (forklifts, AGV, automobile, golf cart, train, wheelchair etc.)
- Wide voltage range battery discharger: 12 V to 96 V Nominal

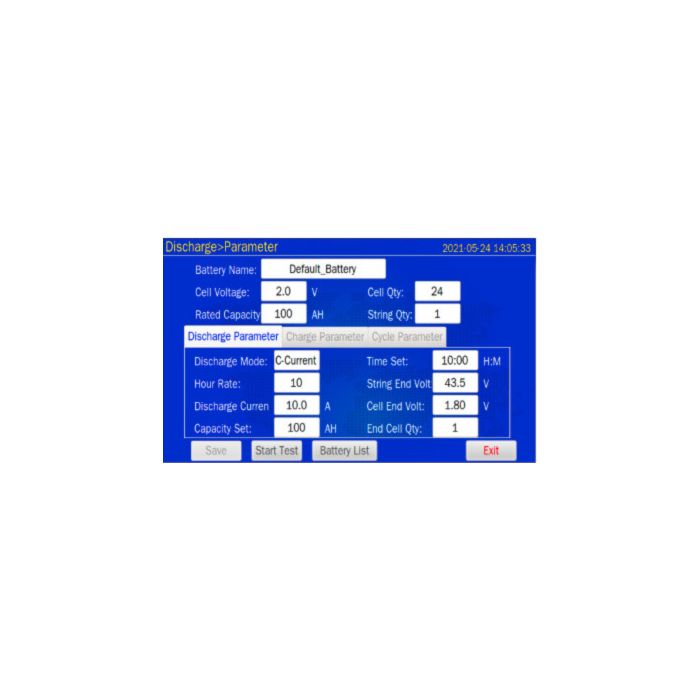

- Programmable to run multiple charge/discharge cycles, without intervention, on lead acid and lithium batteries

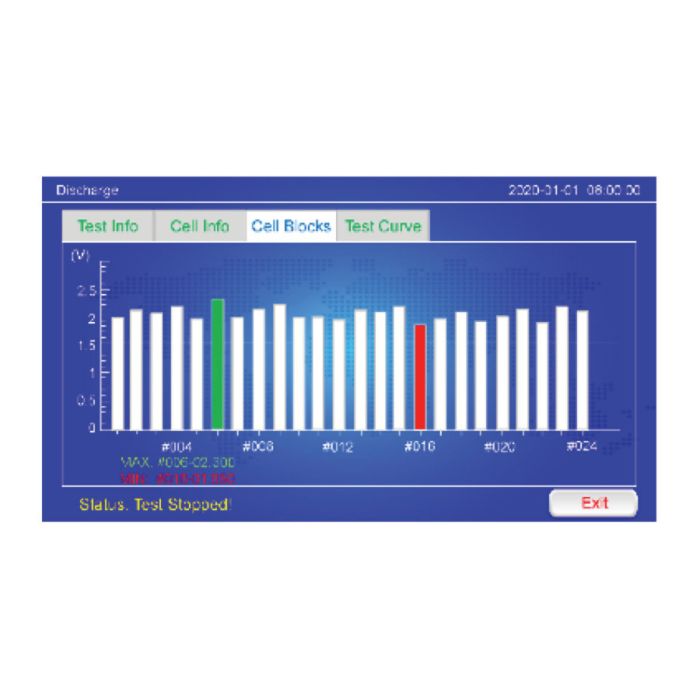

- 7 inch LCD touch screen for easy operation and showing various parameters and graphing in real time
- Adjustable stop points and multiple alarm designs to control the discharge & charge process intelligently
- Supports RS485 real time monitoring via PC or USB download of data after discharge
- Free PC software for capacity evaluation and report generation available at Exponentialpower.com
- Modules between 1.2 V/2 V (qty. 10+1 spare) is included in the purchase of a 300CT. 2 V/6 V/12 V modules are optional.
| Weight | 114 |
| DC Current Range | 0-300A DC , 0-200A DC |
| DC Volt Range | 8-72 V , 72-110 V |
| Voltage Measurement | Group voltage range: 8-110 V DCAccuracy & resolution: ±0.3%FS+0.3 V, 0.1 VCell voltage range: 0-15 VAccuracy & resolution: ±0.2%FS+0.005 V, 0.01 V |
| Communications Type | Communicate port: USB/RS485Internal memory: 2GB Flash |
| Internal Memory | 2GB Flash |
| Carry Case Size | 24.2 x 17.1 x 38.6 in |
| Display Type | 7-inch Touch LCD Display |
| Power Supply(s) | Power supply voltage: 110/220 VAC (-20% to +30%)Frequency: 50/60 Hz ,Power consumption: 300W(max) |
| Power Consumption | 300W(max) |
| Operating Temperature | -5 to 50° C or 23 to 122° FStorage temperature: -40 to 70° C or -40 to 158° FHumidity: 5%-90% RHAltitude: Below 4000 m or 1300 ftWorking noise: <70 dB |
| Dimensions | 15.0 x 14.0 x 31.6 in |
| Type | Description |
| EXP-300CT | Battery discharge & capacity tester |
| EXP-200 CLAMP | 200A external current clamp |
| EXP-600 CLAMP | 600A external current clamp |
| EXP-2612 | Wireless module for 2 V/6 V/12 V |
| EXP-12612 | Wireless module for 1.2 V/2 V |
| Contact Us | Wired Cable modules for 1.2 V/2 V/6 V/12 V |
| LVD standards | EN61010-1:2010EN61010-2-030 |
| EMC standards | EN61326-1:2013EN61000-3-2:2014EN61000-3-3:2013 |
