E-AGM Series: Modular Battery Systems
2 Volt E-AGM Modular Battery Systems 200 – 3,000 Ah

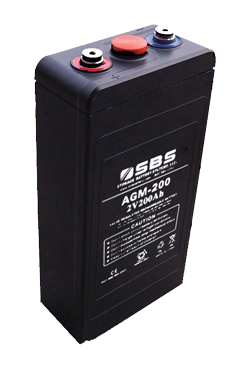

The E-AGM 2 Volt batteries have a similar design as the classic AGM batteries, however they are built in cases that are taller and thinner allowing a more compact footprint especially in larger Ah systems. These batteries must be ordered with the horizontal seismic modular ‘EOS’ racks, and these systems include solid intercell connectors as well as removable Plexiglas covers.
- Features
- Applications
- Resources
- Construction
- Product Numbers

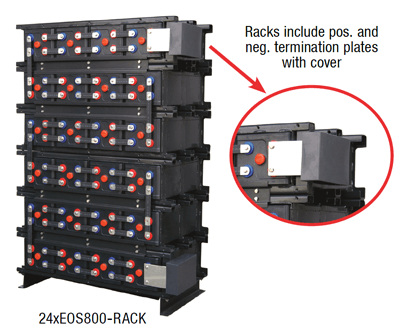

- E-AGM Seismic Modular Racks for 48 Vdc Systems
- E-AGM Seismic Modular Racks for 125 Vdc Systems
- 15–20 year design life at 77° F
- Cycle life: 1200 cycles at 80% DOD at 77° F
- 100% capacity upon delivery
- Maintenance free — no watering required
- No corrosive fumes — special battery room not required
- Seismic modular racking available
- Tank formed plates provide consistent and stable voltages
- Extra space in jars for grid growth to enhance battery life
- Can be installed vertically or horizontally
- UL Listed – UL file no. MH19767
- AGM-100 and AGM-150 battery systems are typically in stock
- Telecom
- Utility
- Oil & Gas
- Solar / Photovoltaic
- UPS
- Emergency Lighting
- Railways
| Positive Plate | Flat plate with lead-calcium/tin grid alloy |
| Negative Plate | Flat plate with lead-calcium grid alloy |
| Separator | Absorbent glass mat (AGM) |
| Container | UL 94 HB plastic resin (flame retardant UL 94 V0 optional) |
| Safety Valve | Self resealing, pressure regulated and explosion proof |
| Terminals | High conductivity lead-plated, with brass insert |
| Modular Racking | Seismic rated, acid resistant, epoxy coated |
| Temp. Range | 5° to 130° F (68° to 77° F recommended) |
| Float Voltage | 2.25 V/cell |
| Equalize Voltage | 2.35 V/cell |
| Plexiglas Shields | Included with rack kit |

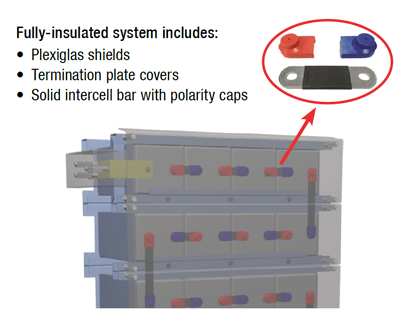

| Intercell Connectors | Fully insulated cables (included with modular rack kit) |
For UL VO 94 flame retardant containers and covers add ‘-FR’ after the part number. (Example: AGM-150-FR)
| Battery Part No. | 8Hr Ah Rateto 1.75 V/cell | L x D x H(in.) | Weight(lb.) | Internal Resistance (mOhms) | Terminal Type |
| E-AGM-200 | 200 | 3.72 x 7.26 x 14.7 | 29.7 | 0.67 | M8 |
| E-AGM-300 | 300 | 4.84 x 7.26 x 14.7 | 40.7 | 0.47 | M8 |
| E-AGM-400 | 400 | 6.54 x 7.26 x 14.7 | 53.9 | 0.35 | M8 |
| E-AGM-500 | 500 | 7.66 x 7.26 x 14.7 | 64.9 | 0.33 | M8 |
| E-AGM-600 | 600 | 8.78 x 7.26 x 14.7 | 77.0 | 0.28 | M8 |
| E-AGM-800 | 800 | 6.06 x 9.02 x 22.3 | 115 | 0.21 | M8 |
| E-AGM-1000 | 1000 | 7.32 x 9.02 x 22.3 | 137 | 0.18 | M8 |
| E-AGM-1200 | 1200 | 8.86 x 9.02 x 22.3 | 165 | 0.17 | M8 |
| E-AGM-1500 | 1500 | 10.5 x 9.02 x 22.3 | 203 | 0.14 | M8 |
| E-AGM-2000 | 2000 | 13.8 x 9.17 x 22.3 | 267 | 0.11 | M8 |
| Battery Type | Rack Part No. | Rack Weight (lb.) | L x D x H (in.) |
| E-AGM-200 | 24xEOS200-RACK | 341 | 35 x 17 x 42 |
| E-AGM-300 | 24xEOS300-RACK | 363 | 35 x 17 x 50 |
| E-AGM-400 | 24xEOS400-RACK | 377 | 35 x 17 x 59 |
| E-AGM-500 | 24xEOS500-RACK | 403 | 35 x 17 x 66 |
| E-AGM-600 | 24xEOS600-RACK | 429 | 35 x 17 x 73 |
| E-AGM-800 | 24xEOS800-RACK | 810 | 42 x 25 x 57 |
| E-AGM-1000 | 24xEOS1000-RACK | 847 | 42 x 25 x 64 |
| E-AGM-1200 | 24xEOS1200-RACK | 924 | 42 x 25 x 73 |
| E-AGM-1500 | 24xEOS1500-RACK | 968 | 65 x 25 x 57 |
| E-AGM-2000 | 24xEOS2000-RACK | 1023 | 66 x 25 x 70 |
| Battery Type | Rack Part No. | Rack Weight (lb.) | L x D x H (in.) |
| E-AGM-200 | 60xEOS200-RACK | 1023 | 85 x 17 x 42 |
| E-AGM-300 | 60xEOS300-RACK | 1089 | 85 x 17 x 50 |
| E-AGM-400 | 60xEOS400-RACK | 1129 | 85 x 17 x 59 |
| E-AGM-500 | 60xEOS500-RACK | 1208 | 85 x 17 x 66 |
| E-AGM-600 | 60xEOS600-RACK | 1287 | 85 x 17 x 73 |
| E-AGM-800 | 60xEOS800-RACK | 2429 | 107 x 25 x 57 |
| E-AGM-1000 | 60xEOS1000-RACK | 2541 | 107 x 25 x 64 |
| E-AGM-1200 | 60xEOS1200-RACK | 2772 | 107 x 25 x 73 |
| E-AGM-1500 | 60xEOS1500-RACK | 2904 | 163 x 25 x 57 |
| E-AGM-2000 | 60xEOS2000-RACK | 3069 | 165 x 25 x 70 |
