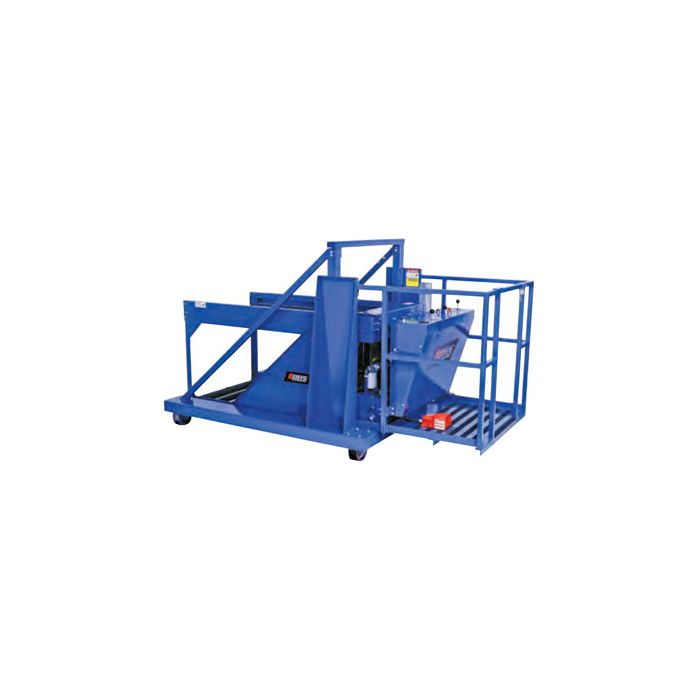

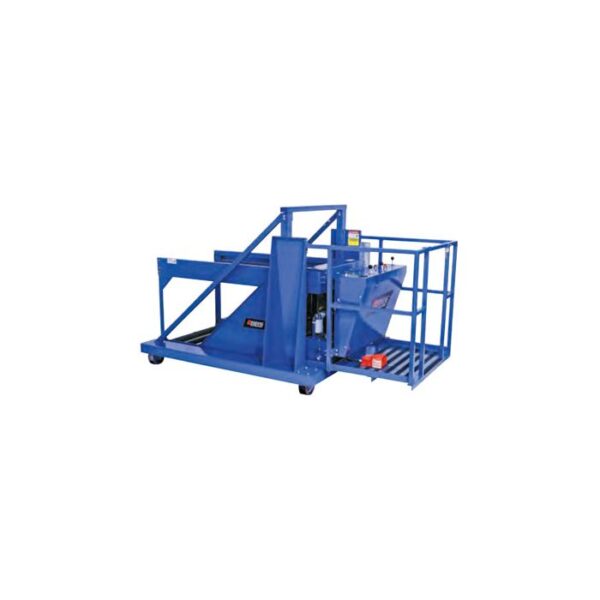

BHS BE-SS: Single Side Battery Extractor
The BHS BE-SS single side battery extractor is fully hydraulic, track-mounted and floor-driven. Designed with a heavy-duty structure and a durable powder coat finish to resist both acid and scratches. The low-maintenance design reduces the frequency for preventative maintenance.
- BE-lloT package otters real-time data and reporting, predictive maintenance notifications, operator login accountability, and asset protection (see next page for more details)
- First 6 months of the BE-lloT package included. After initial 6 months, additional subscription fees apply.
- Heavy-duty construction for added reliability
- Low-maintenance design reduces preventative maintenance frequency
- No exposed components for added safety
- Durable powder coat finish resists both acid and scratches
- Manual control of hydraulics for easy operation
- Vacuum extraction reduces wear and tear on batteries
- Vacuum extractor arm adjustable for various reach requirements*
- Non-proprietary hydraulic and electrical components lower replacement part costs
- Redesigned hydraulic system for increased flow capacities and consistent function speeds
- Quiet-running dual floor drive system provides positive traction on wet or dry surtaces*
- BHS exclusive Non-Inter Flow (NIF) hydraulic manifold system stabilizes the lift cylinders to ensure a level roller bed during load transfers*
| Vacuum Release Time | < 1 s |
| Vacuum | 21" HG / 711 mbar |
| Vacuum Pump | 1/3 hp / 0.25 kW |
| Hydraulic Power Unit | 2 hp / 149 kW |
| Control Circuit Voltage | 120 V ac |
| AC Current Draw | 5.8 / 2.9 A |
| Vacuum Attach Time | < 1 s |
| Draw Bar Pull / Magnet | 800 to 1,200 lb |
| Raise / Lower Speed | 8 ft/min / 0.04 m/s |
| Travel Speed | 60 ft/min / 0.30 m/s |
| Input Voltage | 240/480 V / 3 ph / 60 Hz |
| Draw Bar Pull / Vacuum | 1,000 lb |
| Hydraulic Pump | 2 gal/min / 7.57 L/min |
| Full Load Capacity | 4,500 lb |
| Minimum Battery Height | 19" |
| Guide Track | 2" x 2.5" Angle |
| Roller Height | 5.5" Min / 25.5" Max |
| Total Compartment Rollers | 6 |
| Minimum Battery Length | 24" |
| Maximum Battery Dimensions (L x W x H) | 45" X 35" X 36" |
| Battery Compartment Width | 36.38" |
| Wheel Base (Side to Side) | 56.13" |
| Extractor Arm Reach (Beyond Roller Bed) | 9" |
| Extractor Arm Travel Speed | 0 to 20 ft/min / 0 to 0.10 m/s |
| Wheel Base (Front to Back) | 75.75" |
| Minimum Battery Width (w/ magnet) | 6" |
