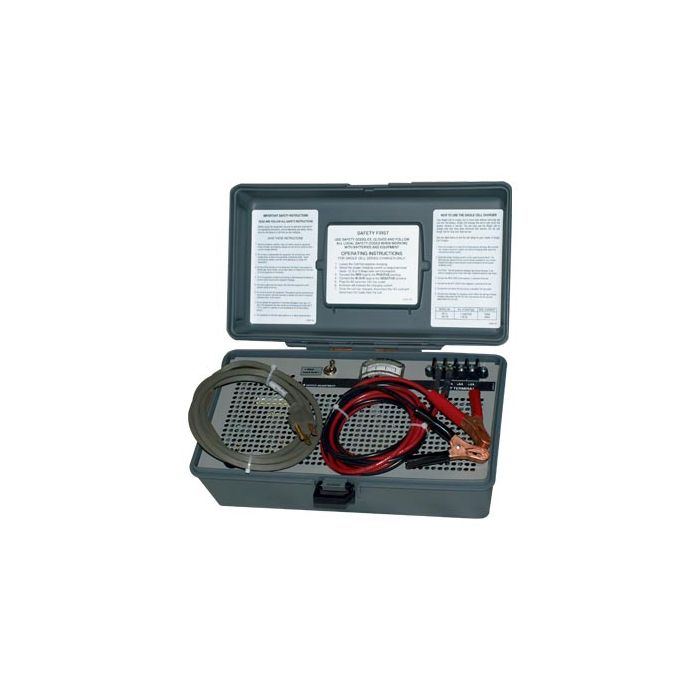

BB0442-01: Portable Single Cell Battery Charger

Boost charge a single cell without removing it from service (even while system is online)
Provides a charge to a replacement cell prior to installation
Input and output cables are stored inside the case when not in use
Lightweight built-in carrying case with handle

Input (AC)

6 ft., 120 Vac, 3-prong cord
Input to output isolation is 2kV
Input current less than 0.5 Ampere

Output (DC)

Selectable 1.8V (Ni-Cad) or 2.6V (Lead-Acid)
Adjustable output voltage ±5%
Output AC ripple is below 1%
Selectable current limited at 3, 6 or 10 Amps

Portable Charger Cut Sheet

Weight	12.000000
AC Input Frequency	60 Hz
AC Input (Volts)	120
DC Output (Volts)	1.8/2.6
Charger Model Number	BB0442-01
DC Output (Amps)	3/6/10
Dimensions	12.3" L x 6.8" D x 4.5" H
