AGM Series: Modular Battery Systems

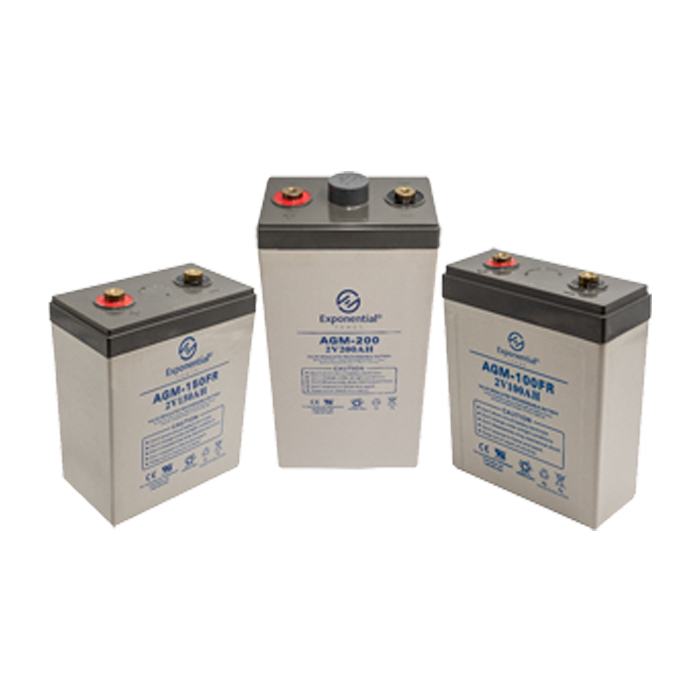

2 Volt AGM Modular Battery Systems: 100 – 400 Ah
AGM battery systems are designed to fit the existing footprints of similar systems such as: GNB Absolyte IIP®, Tyco/Lucent AVR, Enersys DDm®, C&D Liberty 2000®, MSE®, msEndur® and East Penn Unigy II® (Deka). Our AGM VRLA systems are offered in hundreds of different “stackable” configurations from 100Ah to 400Ah. The system comes with protective front shields, intercell connectors/cables, and modular seismic racking. Choose from a wide range of VRLA battery racks.

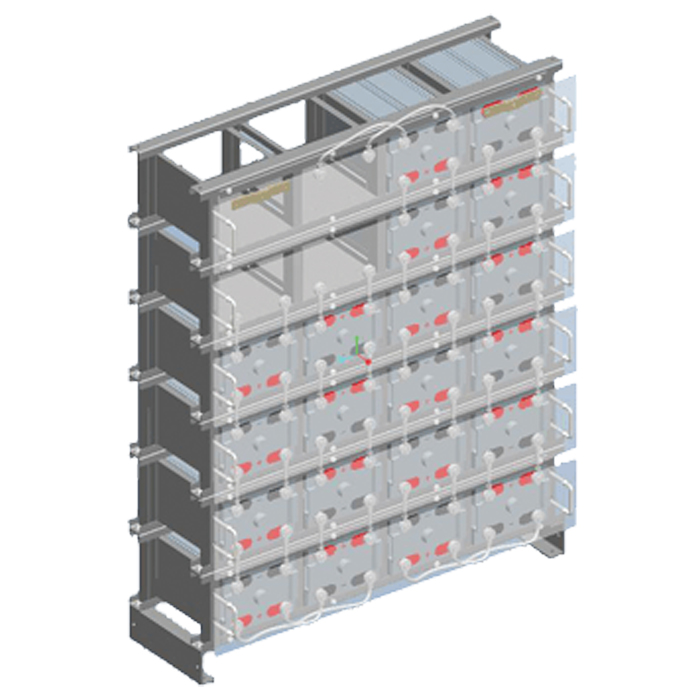

The 2 Volt AGM batteries can be mounted vertically or horizontally in a seismic modular rack. When ordered with the modular racks, this system will come complete with an insulated cable kit as well as removable Plexiglas shields making this a very safe system.
Exponential Power typically stocks 48 and 125 Vdc AGM systems complete with modular rack kits which include the intercell connectors.
Insulated intercell connectors come standard with AGM type racks. (If solid, uninsulated bars are required see E-AGM Series.)
- Features
- Applications
- Resources
- Construction
- Product Numbers
- AGM Seismic Modular Racks for 48 Vdc Systems
- AGM Seismic Modular Racks for 125 Vdc Systems
- 15–20 year design life at 77° F
- Cycle life: 1200 cycles at 80% DOD at 77° F
- 100% capacity upon delivery
- Maintenance free — no watering required
- No corrosive fumes — special battery room not required
- Seismic modular racking available
- Tank formed plates provide consistent and stable voltages
- Extra space in jars for grid growth to enhance battery life
- Can be installed vertically or horizontally
- UL Listed – UL file no. MH19767
- AGM-100 and AGM-150 battery systems are typically in stock
- Telecom Battery
- Utility
- Oil & Gas
- Solar / Photovoltaic
- UPS
- Emergency Lighting
- Railways
| Positive Plate | Flat plate with lead-calcium/tin grid alloy |
| Negative Plate | Flat plate with lead-calcium grid alloy |
| Separator | Absorbent glass mat (AGM) |
| Container | UL 94 HB plastic resin (flame retardant UL 94 V0 optional) |
| Safety Valve | Self resealing, pressure regulated and explosion proof |
| Terminals | High conductivity lead-plated, with brass insert |
| Modular Racking | Seismic rated, acid resistant, epoxy coated |
| Temp. Range | 5° to 130° F (68° to 77° F recommended) |
| Float Voltage | 2.25 V/cell |
| Equalize Voltage | 2.35 V/cell |
| Plexiglas Shields | Included with rack kit |
| Intercell Connectors | Fully insulated cables (included with modular rack kit) |
For UL VO 94 flame retardant containers and covers add ‘-FR’ after the part number. (Example: AGM-150-FR)
| Part No. | 8Hr Ah Rateto 1.75 V/cell | L x D x H(in.) | Weight(lb.) | Internal Resistance (mOhms) | Terminal Type |
| AGM-100 | 100 | 6.69 x 2.83 x 8.35 | 13.2 | 1.40 | M6 |
| AGM-150 | 150 | 6.69 x 3.86 x 8.35 | 18.7 | 1.10 | M6 |
| AGM-200 | 200 | 6.69 x 4.33 x 13.8 | 30.0 | 1.03 | M8 |
| AGM-250 | 250 | 6.69 x 4.33 x 13.8 | 32.0 | 1.00 | M8 |
| AGM-300 | 300 | 6.69 x 5.91 x 13.8 | 41.2 | 0.90 | M8 |
| AGM-400 | 400 | 8.27 x 6.89 x 13.8 | 56.2 | 0.70 | M8 |
| Battery Type | Part No. | Rack Weight (lb.) | L x D x H (in.) | Layout |
| AGM-100 | 24xAGM100-RACK | 276 | 21 x 8.0 x 58 | 4W x 6H |
| AGM-150 | 24xAGM150-RACK | 276 | 25 x 8.0 x 58 | 4W x 6H |
| AGM-200 | 24xAGM200-RACK-DWG | 305 | 27 x 13 x 57 | 4W x 6H |
| AGM-250 | 24xAGM250-RACK-DWG | 305 | 27 x 13 x 57 | 4W x 6H |
| AGM-300 | 24xAGM300-RACK | 335 | 33 x 13 x 58 | 4W x 6H |
| AGM-400 | 24xAGM400-RACK-DWG | 375 | 43 x 13 x 58 | 4W x 6H |
| Battery Type | Part No. | Rack Weight (lb.) | L x D x H (in.) | Layout |
| AGM-100 | 60xAGM100-RACK | 278 | 50 x 8.0 x 58 | 10W x 6H |
| AGM-150 | 60xAGM150-RACK | 290 | 60 x 8.0 x 57 | 10W x 6H |
| AGM-200 | 60xAGM200-RACK | 307 | 64 x 13 x 57 | 10W x 6H |
| AGM-250 | 60xAGM250-RACK | 610 | 64 x 13 x 57 | 10W x 6H |
| AGM-300 | 60xAGM300-RACK | 430 | 80 x 13 x 57 | 10W x 6H |
| AGM-400 | 60xAGM400-RACK | 800 | 107 x 13 x 58 | 10W x 6H |
